How to use RIDE PRO

Guide Menu

Please select the purpose from the icon.

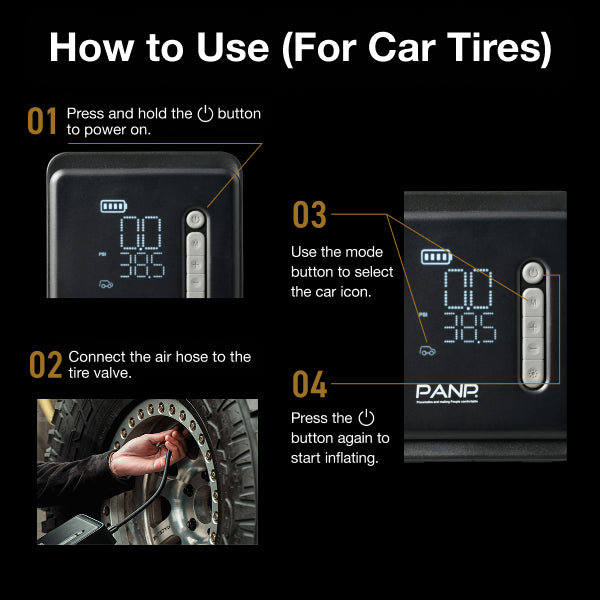

How to operate the touch panel

Touch panel operation

  1. To turn on the power, press and hold the power icon for 3 seconds until "ON" appears on the screen. (To turn off the power, press and hold the power icon for 3 seconds until "OFF" appears.)
  2. You can "switch modes" with the M button.
  3. Press and hold the M button for 3 seconds to change the air pressure unit.
  4. You can adjust the air pressure by pressing the +/- button. *Press and hold to quickly change the value.
  5. How to read the screen Upper number: Displays the current tire pressure Lower number: Displays the desired tire pressure
  6. Press the power button to start or stop inflation. *It makes a 65dB noise.
  7. Press the LED light button to turn on the LED light. Press it again to switch to flashing light. Press it again to turn off the LED light.

Automobile

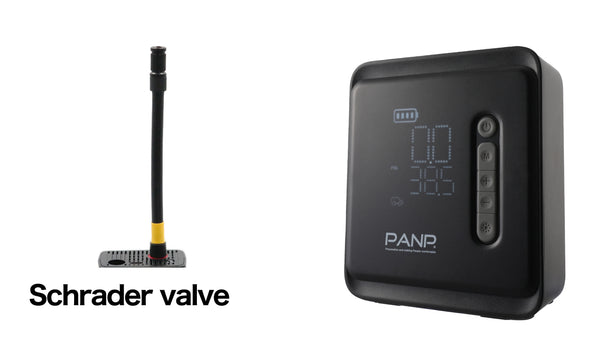

○ The air inlet (American valve) has the shape shown in the photo below.

What to prepare

Air hose (stored in the main unit) and RIDE main unit

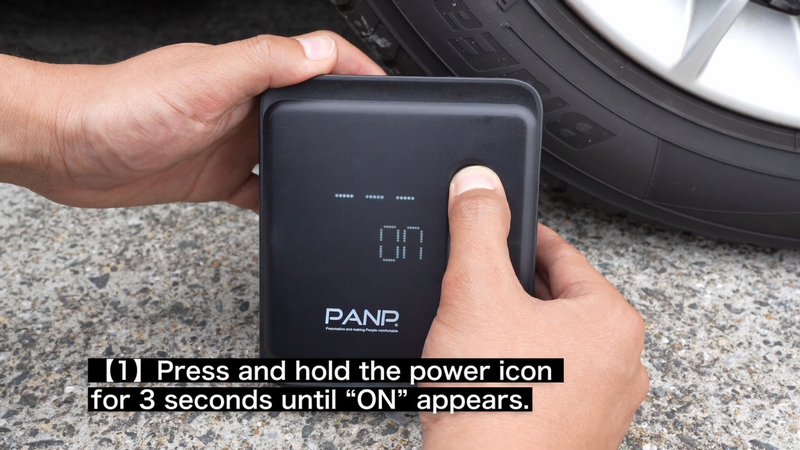

[1] Press and hold the power icon for 3 seconds until “ON” appears.

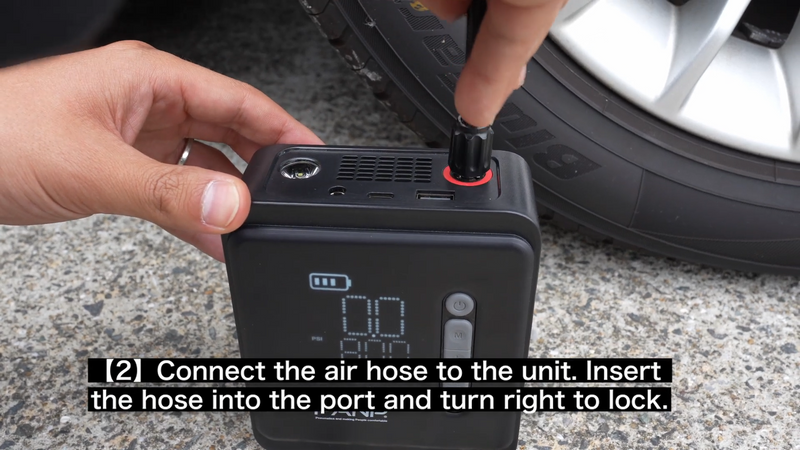

(2) Connect the air hose to the unit. Insert the hose into the port and turn right to lock.

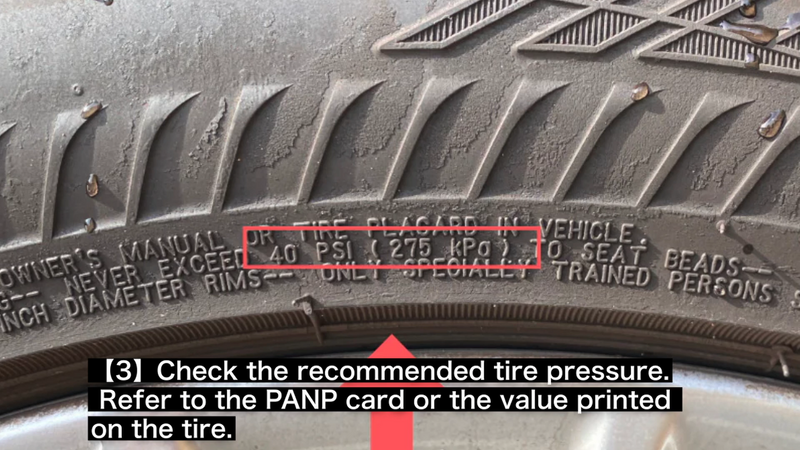

[3] Check the recommended tire pressure. Refer to the PANP card or the value printed on the tire.

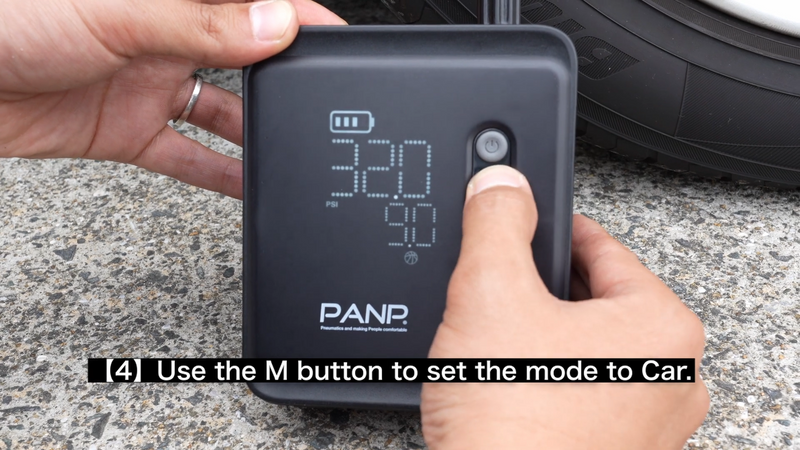

(4)Use the M button to set the mode to Car.

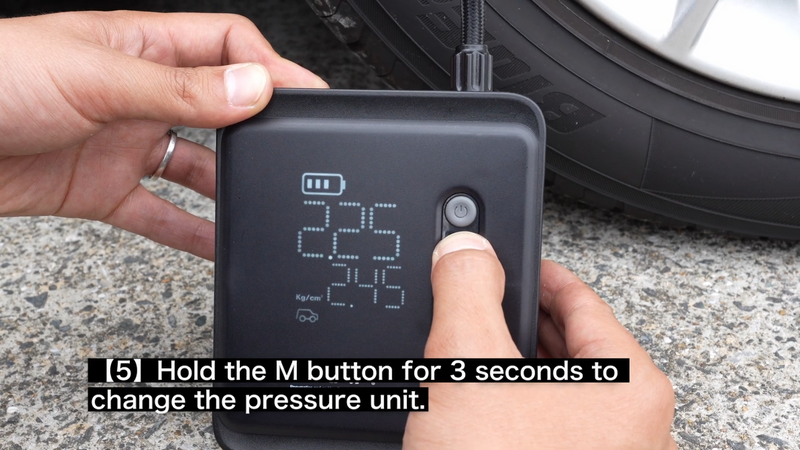

[5] Hold the M button for 3 seconds to change the pressure unit.

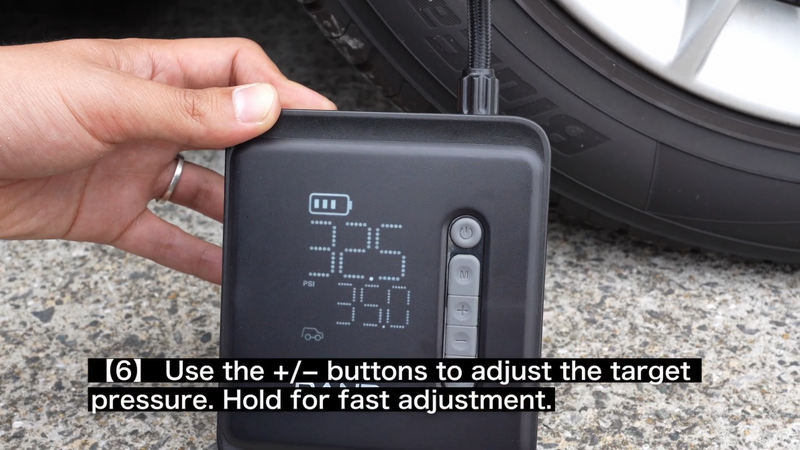

[6] Use the +/- buttons to adjust the target pressure. Hold for fast adjustment.

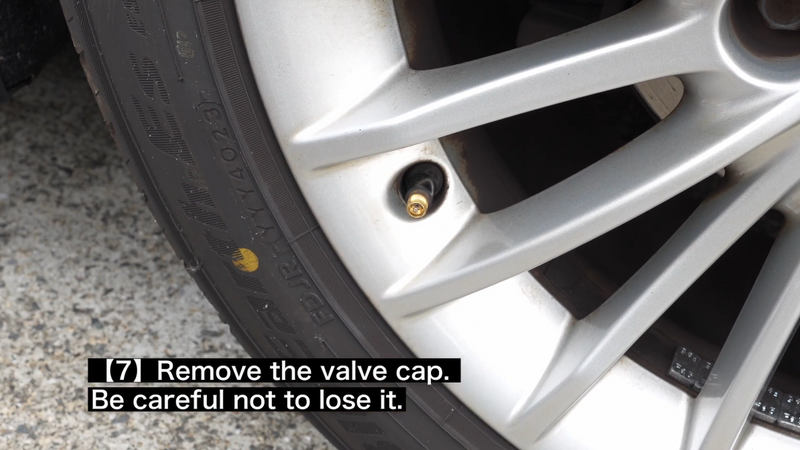

[7] Remove the valve cap. Be careful not to lose it.

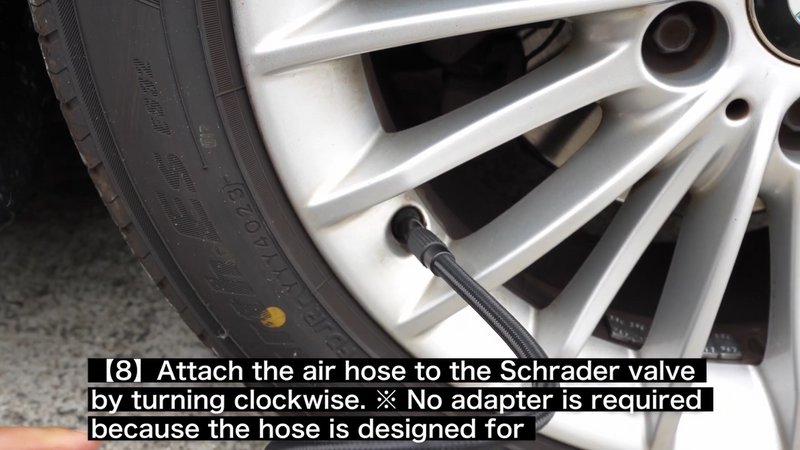

[8] Attach the air hose to the Schrader valve by turning clockwise. ※ No adapter is required because the hose is designed for Schrader valves.

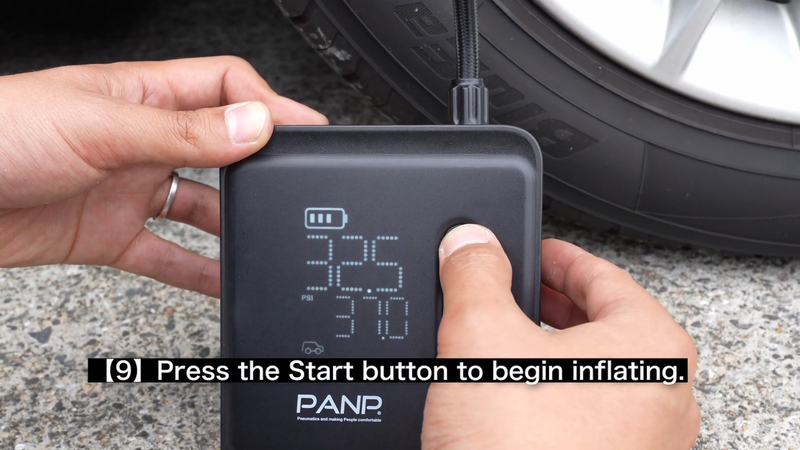

[9] Press the Start button to begin inflating.

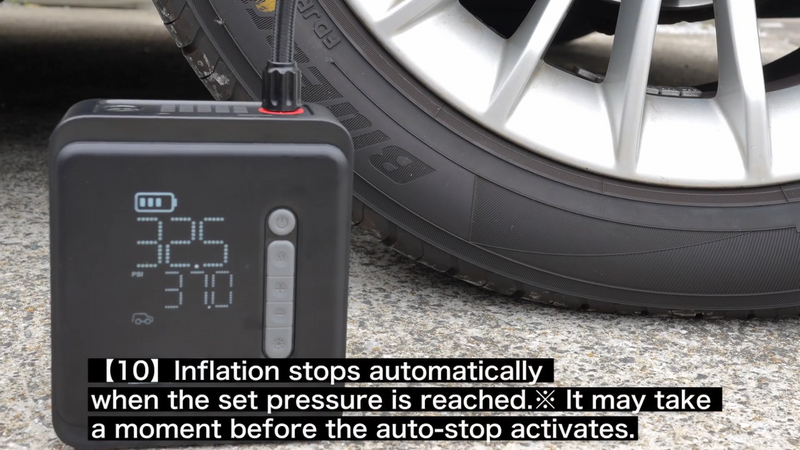

[10] Inflation stops automatically when the set pressure is reached. ※ It may take a moment before the auto-stop activates.

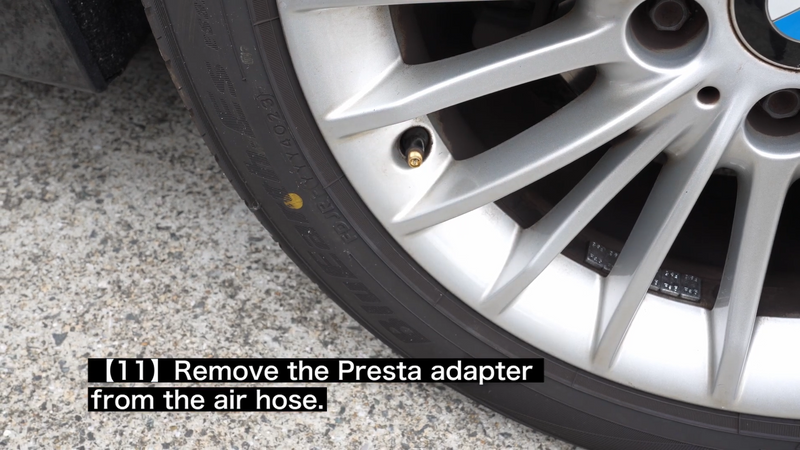

[11] Remove the Presta adapter from the air hose.

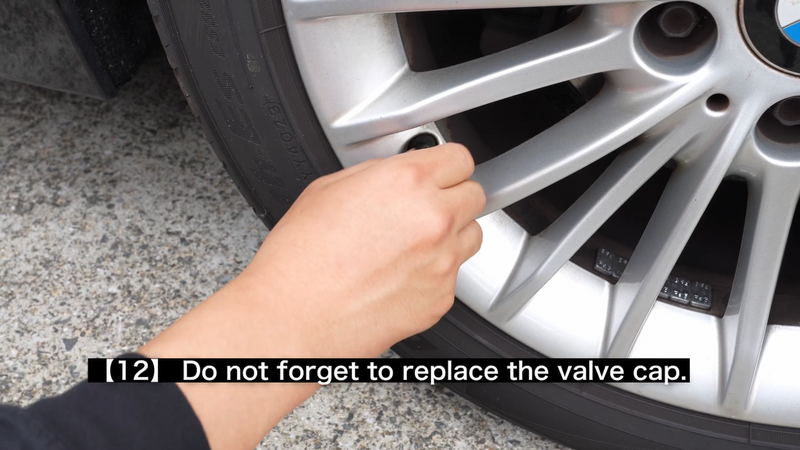

(12) Do not forget to replace the valve cap.

Motorcycles (Motorcycles)

○ The air inlet (American valve) has the shape shown in the photo below.

What to prepare

Air hose (stored in the main unit) and RIDE main unit

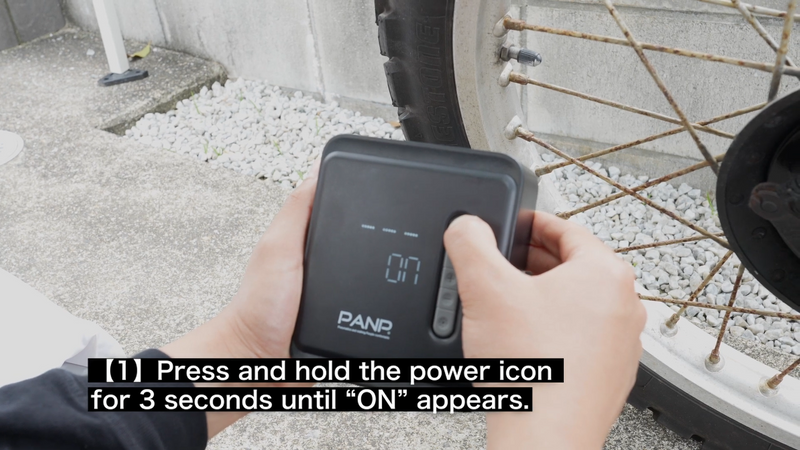

(1) Press and hold the power icon for 3 seconds until “ON” appears.

(2) Connect the air hose to the unit.

[3] Check the recommended tire pressure. Refer to the PANP card or the value printed on the tire.

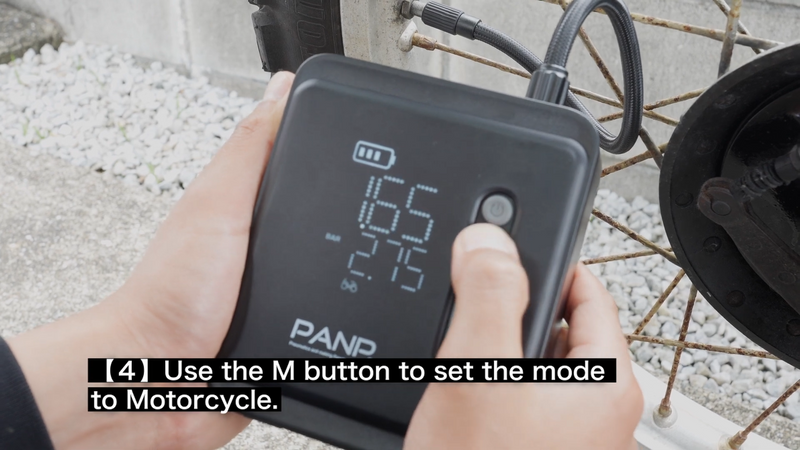

(4) Use the M button to set the mode to Motorcycle.

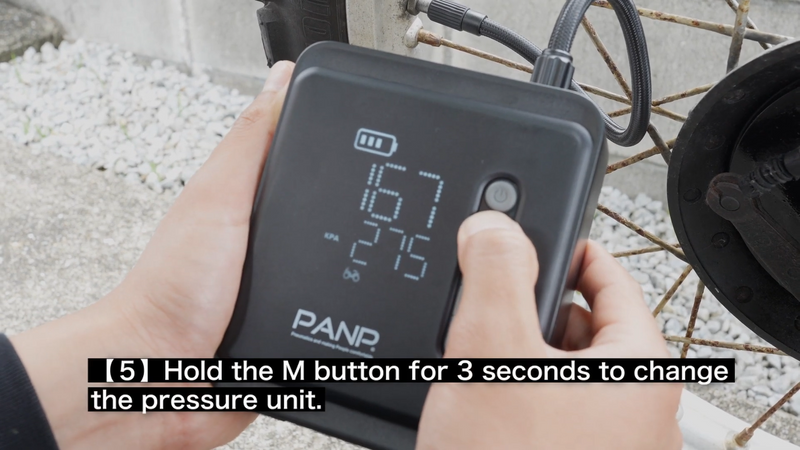

[5] Hold the M button for 3 seconds to change the pressure unit.

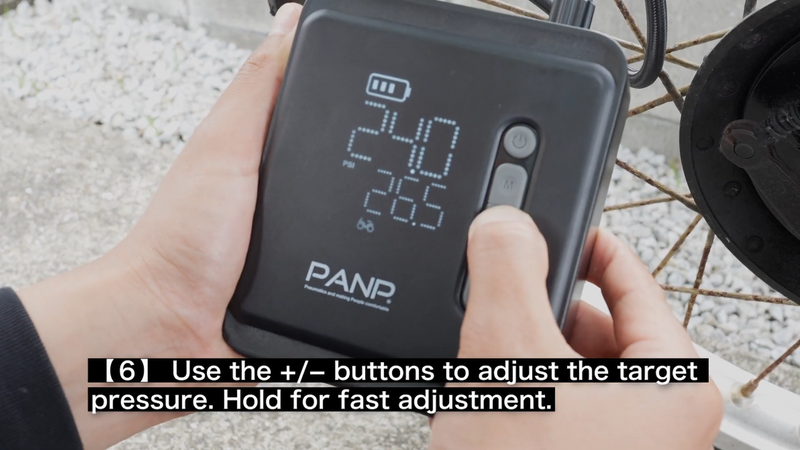

[6] Use the +/- buttons to adjust the target pressure. Hold for fast adjustment.

[7] Remove the valve cap. Be careful not to lose it.

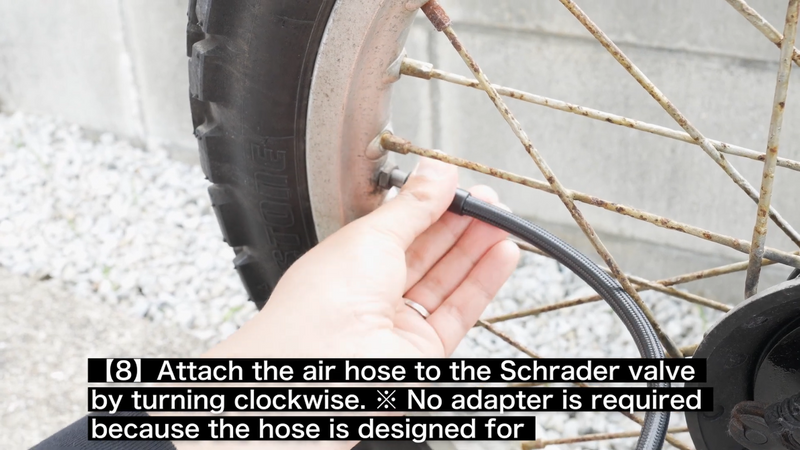

[8] Attach the air hose to the Schrader valve by turning clockwise. ※ No adapter is required because the hose is designed for

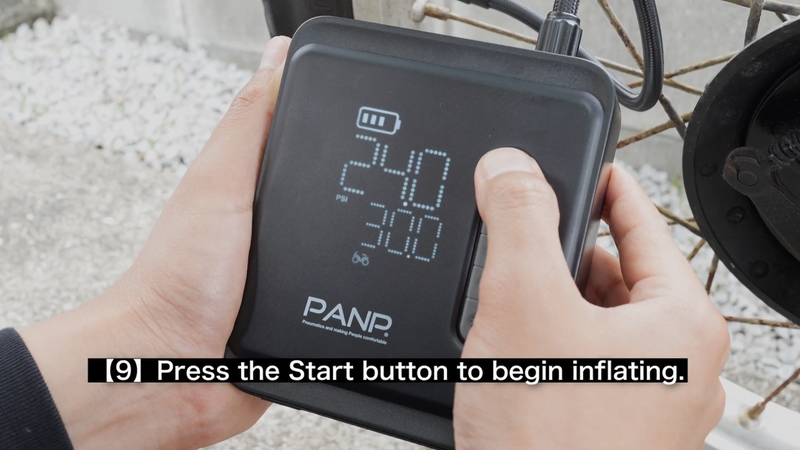

[9] Press the Start button to begin inflating.

[10] Inflation stops automatically when the set pressure is reached.※ It may take a moment before the auto-stop activates.

(11) Disconnect the air hose from the unit. Turn left to release.

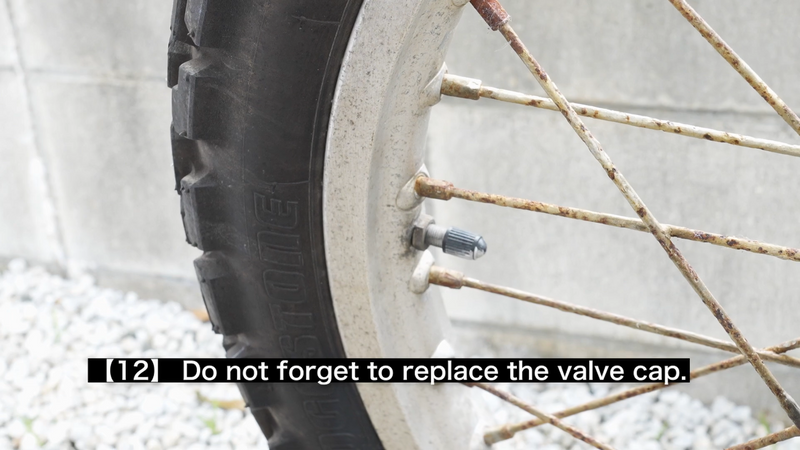

(12) Do not forget to replace the valve cap.

Bicycle/Mamachari

○ The air inlet (British valve) has the shape shown in the photo below.

What to prepare

British valve attachment, air hose (stored in the main unit), RIDE main unit

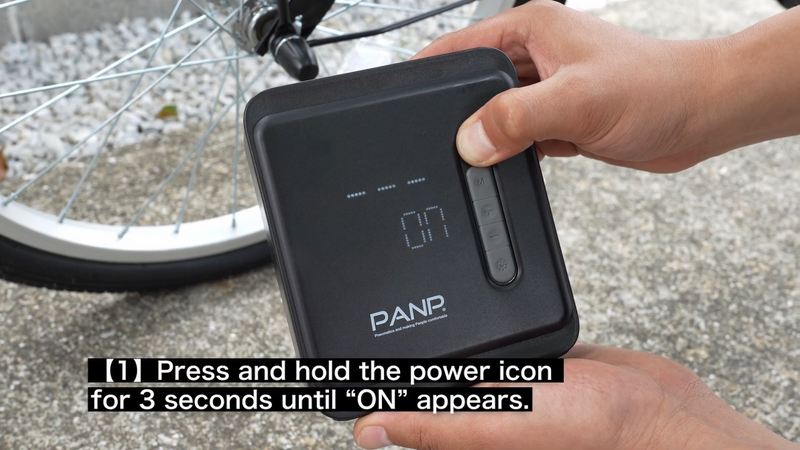

(1) Press and hold the power button for 3 seconds until “ON” appears.

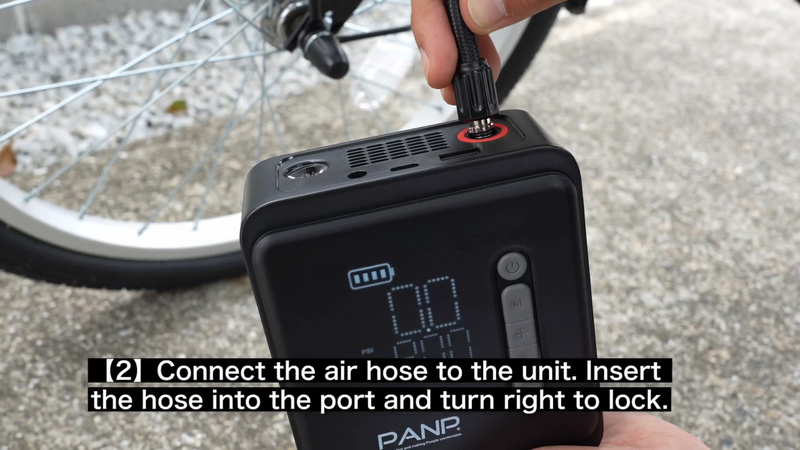

(2) Connect the air hose to the unit. Insert it into the port and turn right to lock.

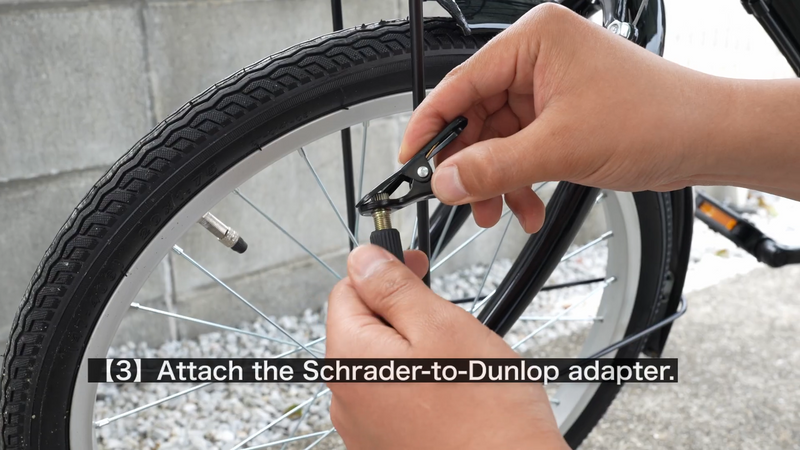

(3) Attach the Schrader-to-Dunlop adapter.

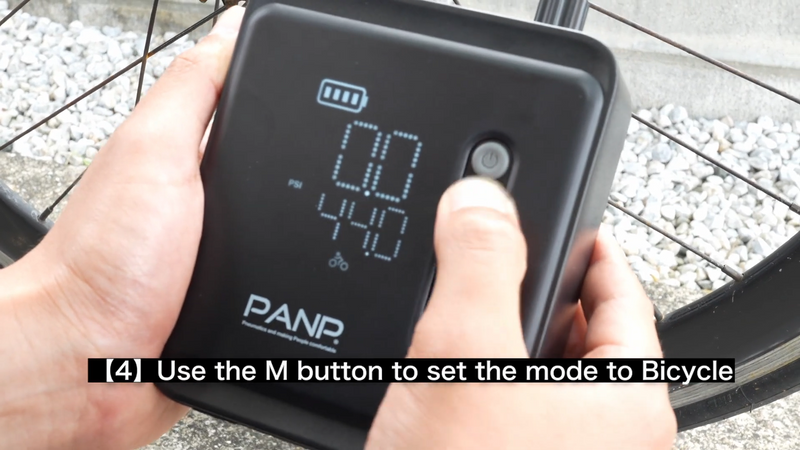

[4] Press the M button to set the mode to Bicycle.

[5] Check the recommended tire pressure. Refer to the PANP card or the value printed on the tire.

[6] Press and hold the M button for 3 seconds to change the pressure unit.

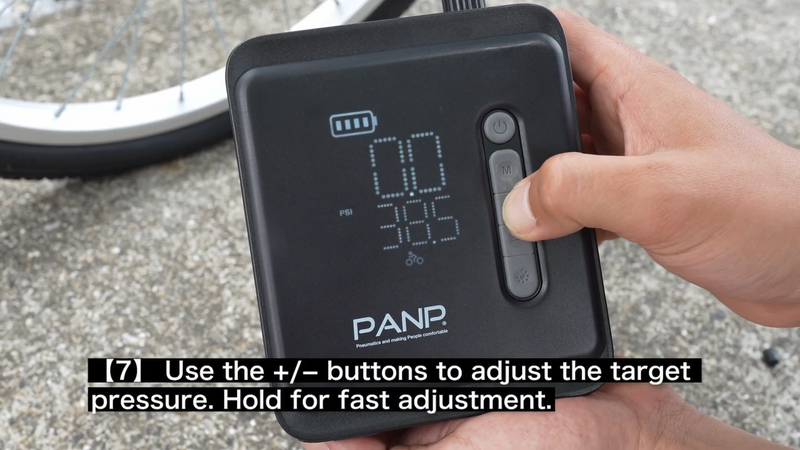

[7] Use the +/- buttons to adjust the target pressure. Hold for fast adjustment.

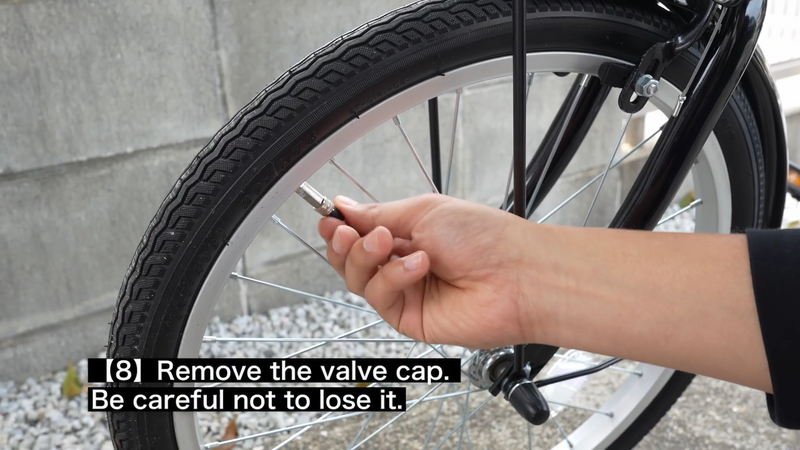

[8] Remove the valve cap. Be careful not to lose it.

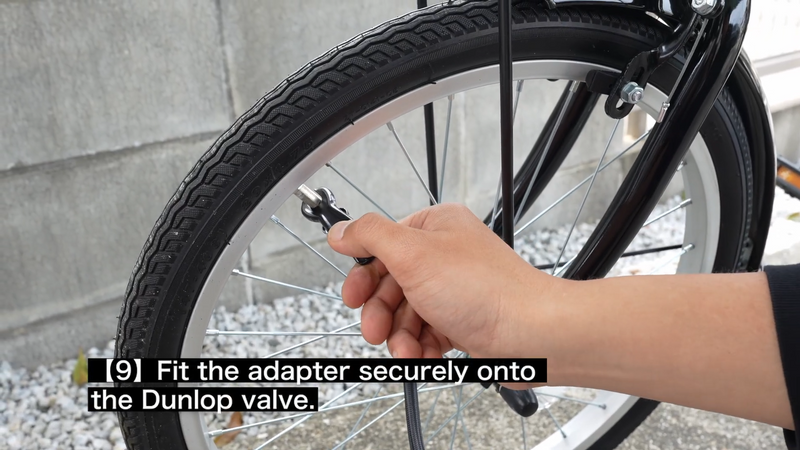

[9] Fit the adapter securely onto the Dunlop valve.

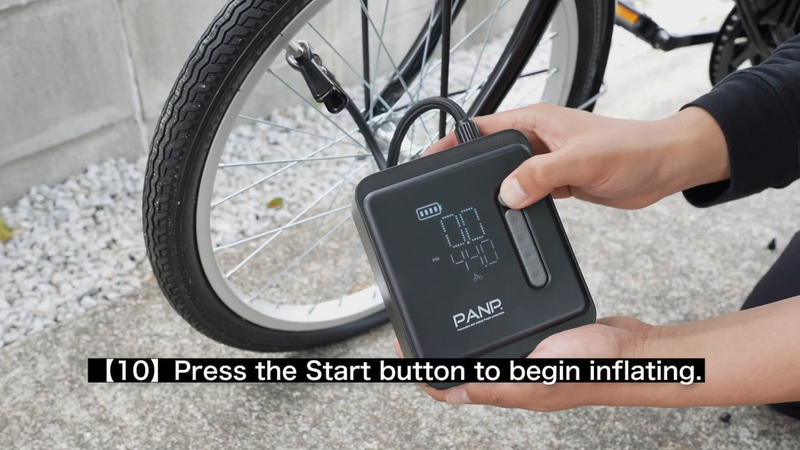

[10] Press the Start button to begin inflating.

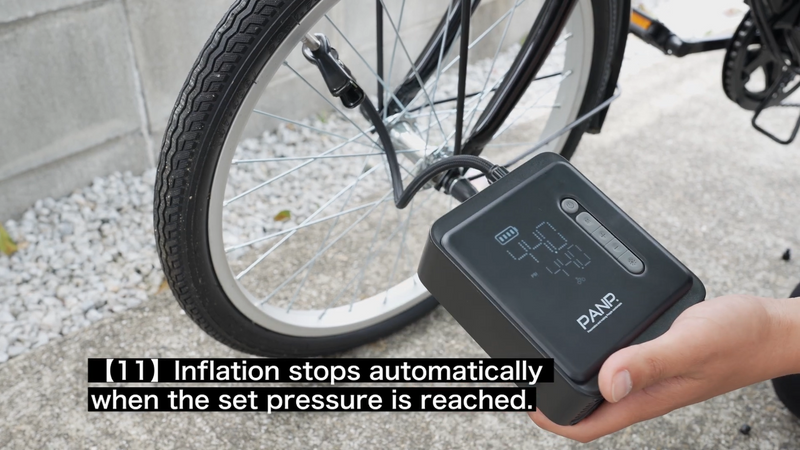

[11] Inflation stops automatically when the set pressure is reached.

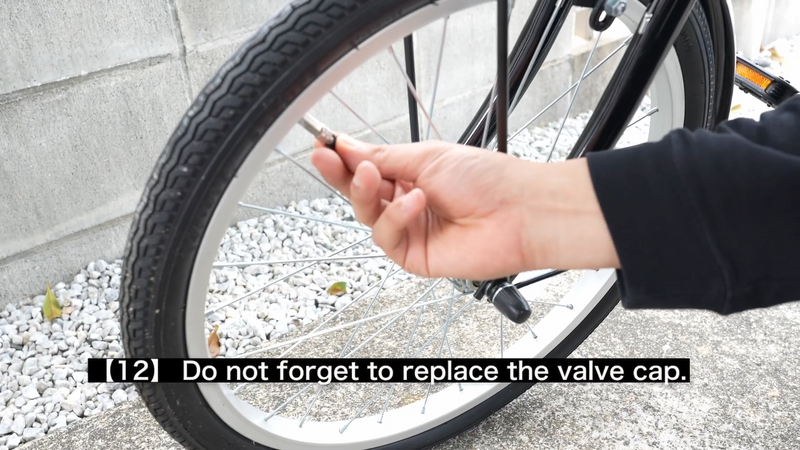

(12) Do not forget to replace the valve cap.

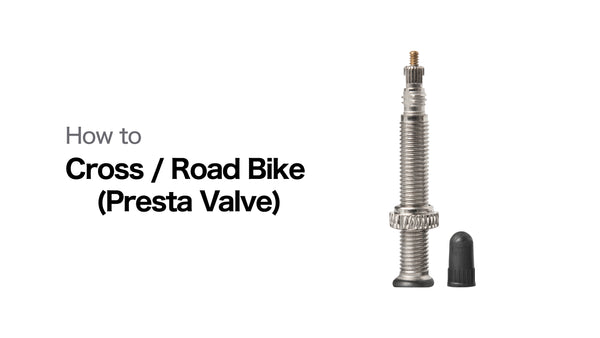

Cross Bike/Road Bike

○ The air inlet (British valve) has the shape shown in the photo below.

What to prepare

British valve attachment, air hose (stored in the main unit), RIDE main unit

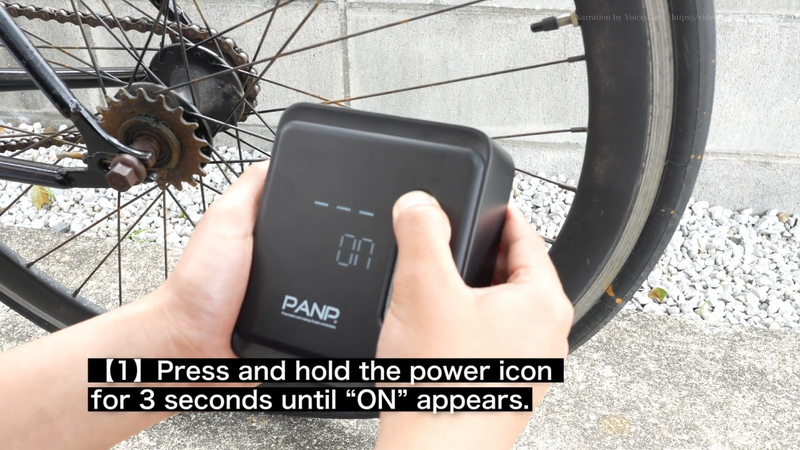

(1) Press and hold the power button for 3 seconds until “ON” appears.

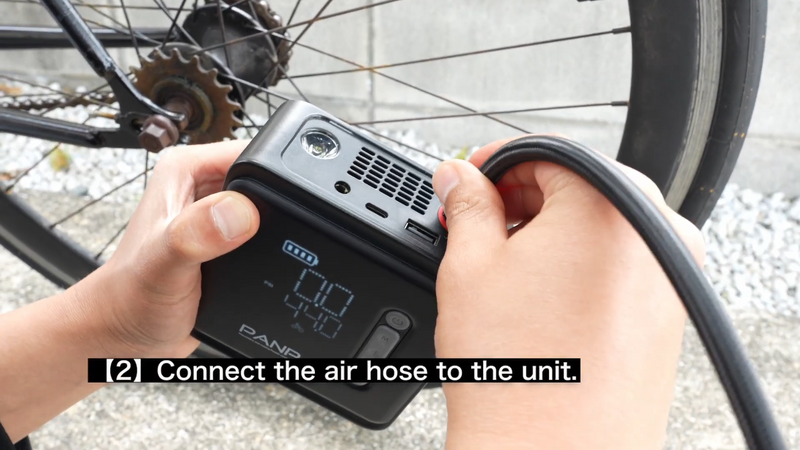

(2) Connect the air hose to the unit.

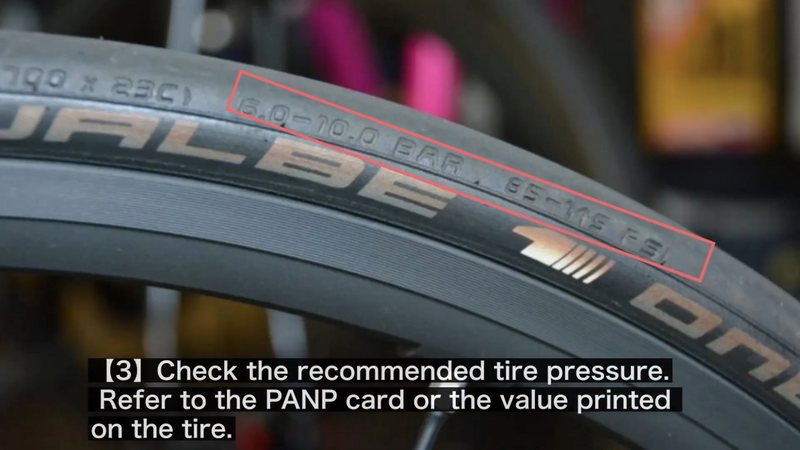

[3] Check the recommended tire pressure. Refer to the PANP card or the value printed on the tire.

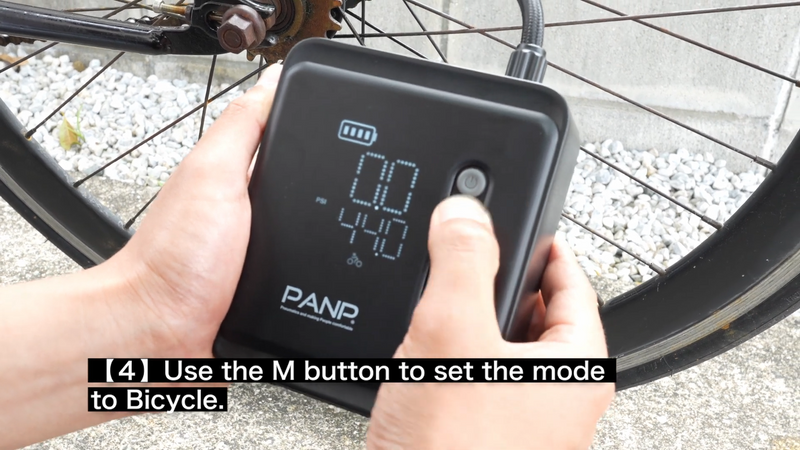

(4) Use the M button to set the mode to Bicycle.

(5) Hold the M button for 3 seconds to change the pressure unit.

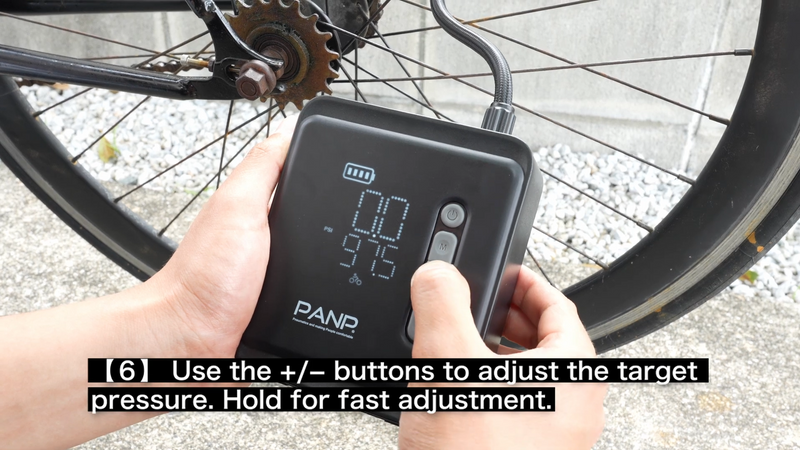

(6) Use the +/- buttons to adjust the target pressure. Hold for fast adjustment.

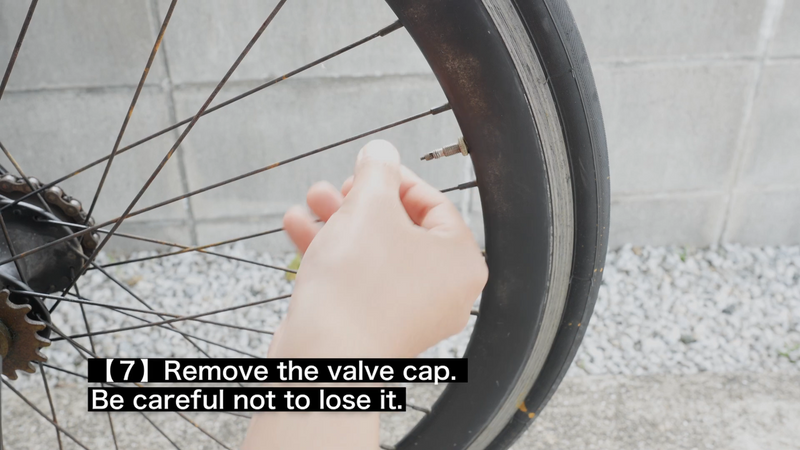

(7) Remove the valve cap. Be careful not to lose it.

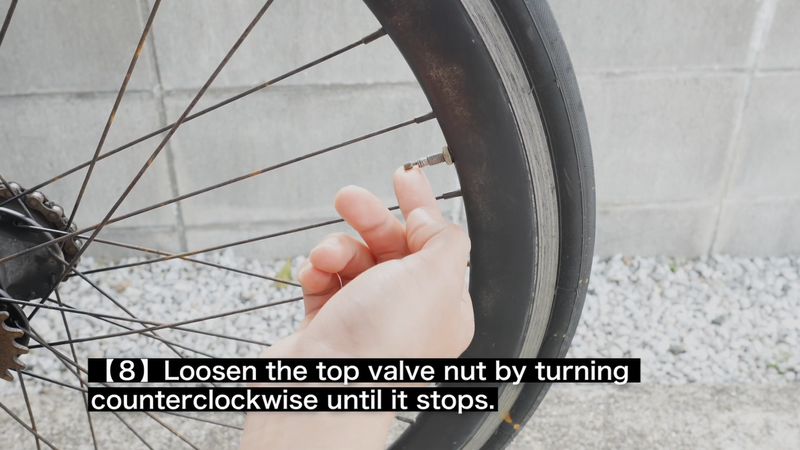

[8] Loosen the top valve nut by turning counterclockwise until it stops.

[9] Press the valve once to release a little air.This helps free the valve if it is stuck.

[10] Attach the Presta adapter.

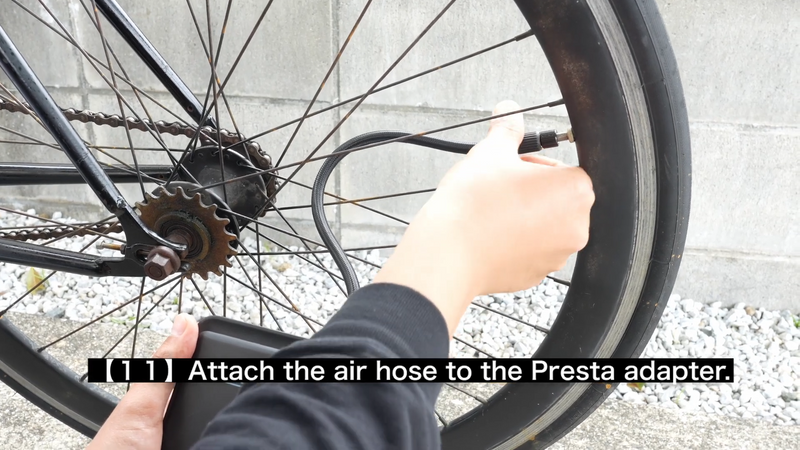

[11] Attach the air hose to the Presta adapter.

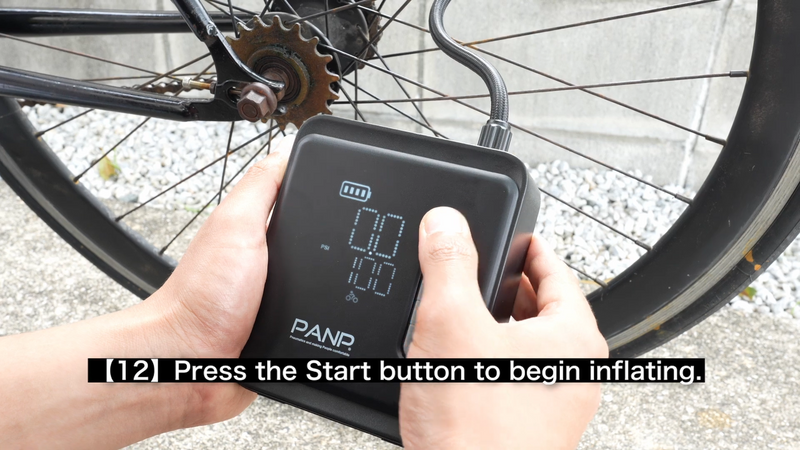

[12] Press the Start button to begin inflation.

[13] Inflation stops automatically when the set pressure is reached.

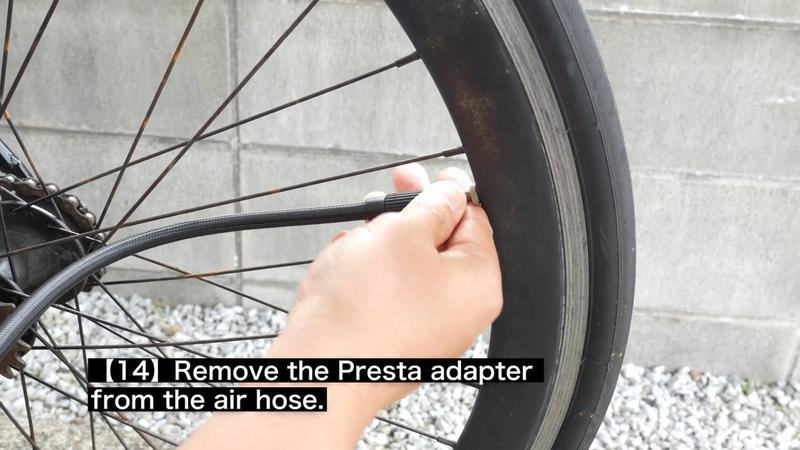

(14) Remove the Presta adapter from the air hose.

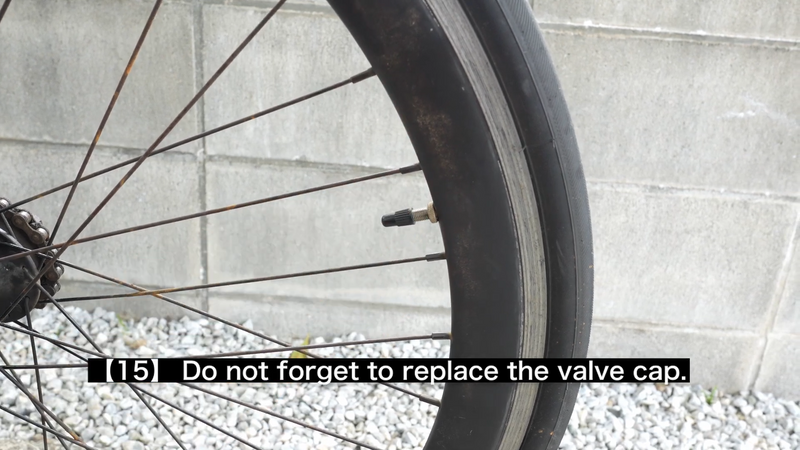

[15] Do not forget to replace the valve cap.

Ball

○ The air inlet (American valve) has the shape shown in the photo below.

What to prepare

Ball attachment, air hose (stored in the main unit), RIDE main unit

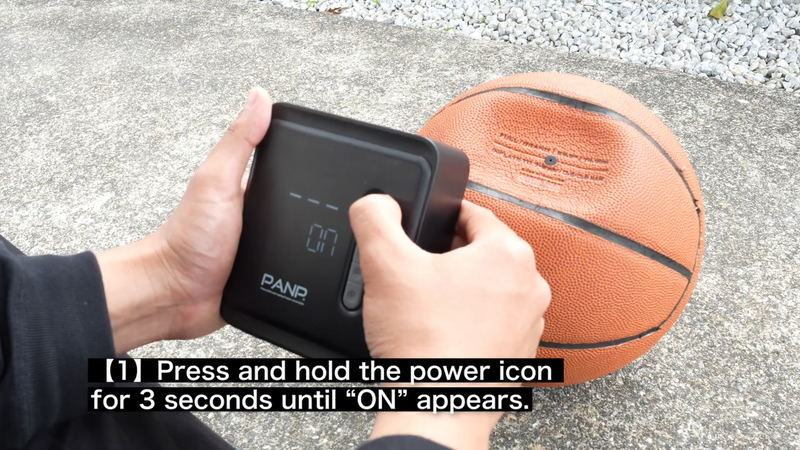

(1) Press and hold the power icon for 3 seconds until “ON” appears.

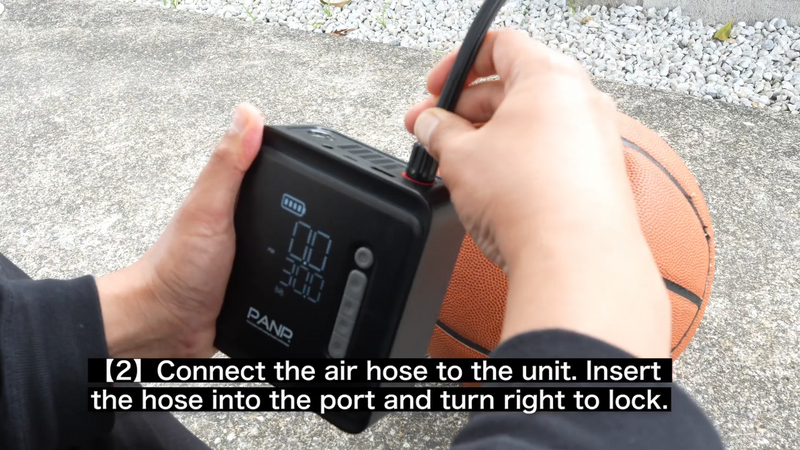

(2) Connect the air hose to the unit. Insert the hose into the port and turn right to lock.

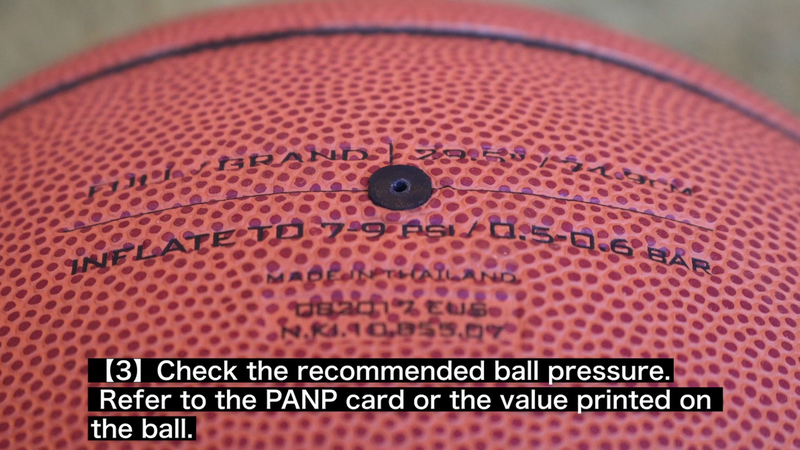

(3) Check the recommended ball pressure. Refer to the PANP card or the value printed on the ball.

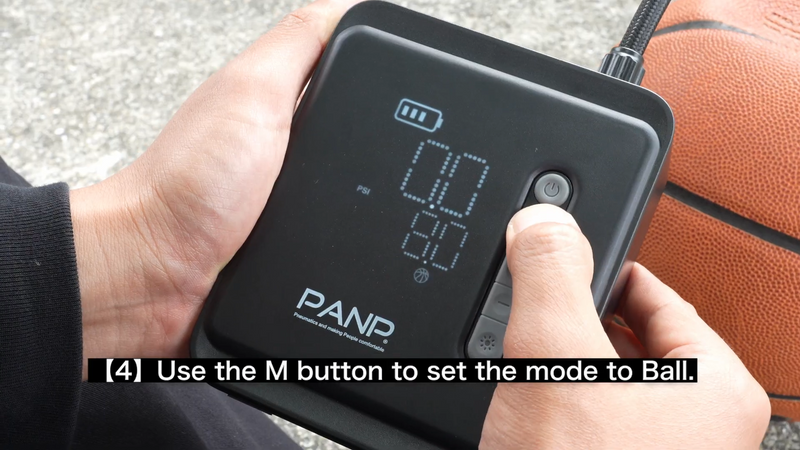

[4] Use the M button to set the mode to Ball.

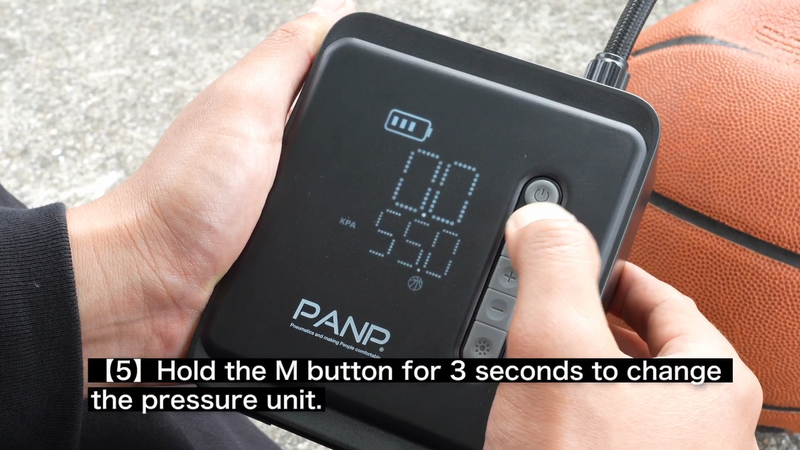

[5] Hold the M button for 3 seconds to change the pressure unit.

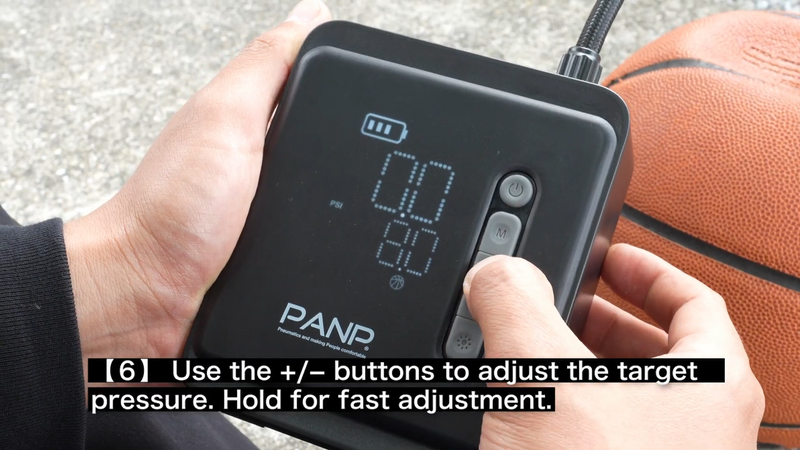

[6] Use the +/- buttons to adjust the target pressure. Hold for fast adjustment.

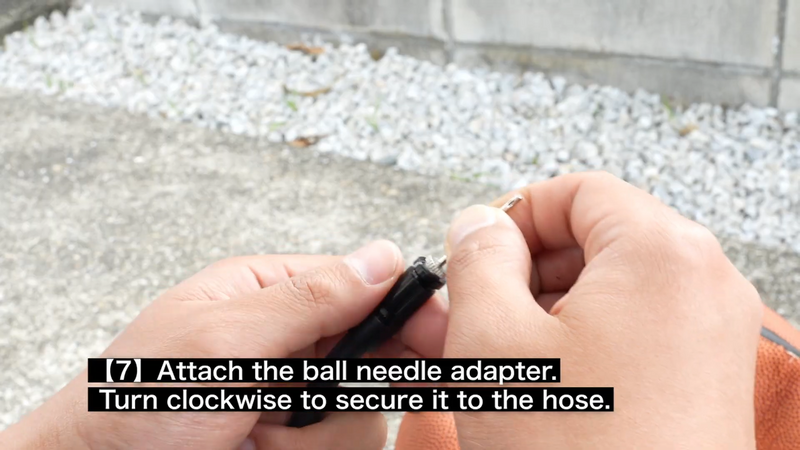

[7] Attach the ball needle adapter. Turn clockwise to secure it to the hose.

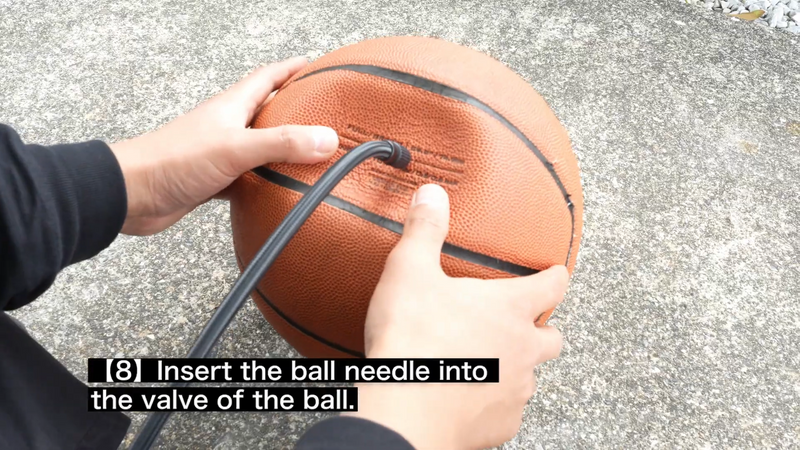

[8] Insert the ball needle into the valve of the ball.

[9] Press the Start button to begin inflating.

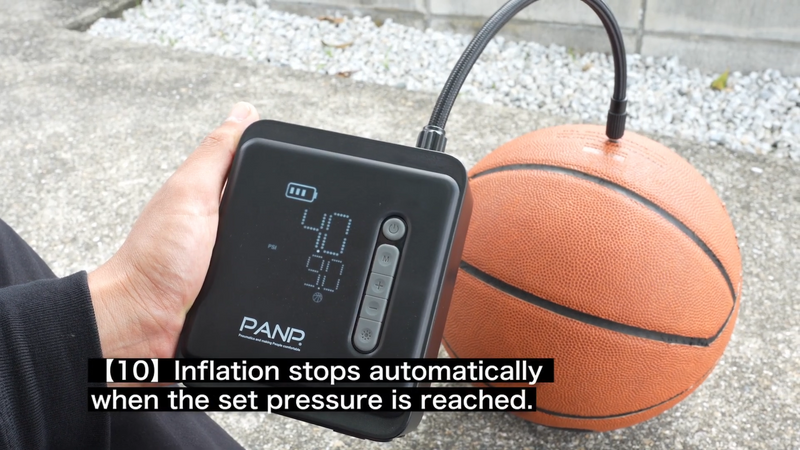

[10] Inflation stops automatically when the set pressure is reached.

(11) Remove the ball needle adapter from the air hose.
